 Domain  Food & Beverage
 Project Name  Ice cream Plant Automation
 Client  Hindustan Lever Ltd
 Consultant
 Project Highlights
System Configuration
1 PLC/Drives

: S-7 300



2 HMI :WinCC
3 Communication Protocol : Industrial Ethernet , Profibus-DP.
4 IO Count : 450.
5 Software : Simatic Manager,Wincc
Project Synopsis

Automation system for Ice cream Plant. The existing system was a Texas Instruments PLC System which was upgraded with Siemens S7-300 and WinCC.

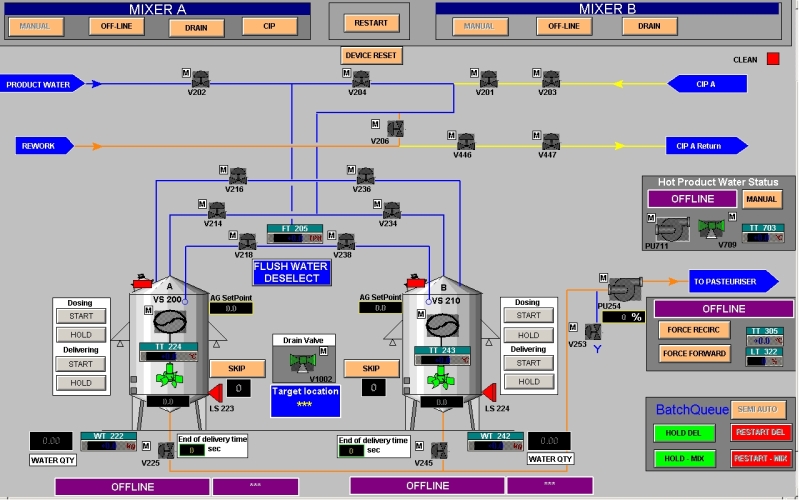

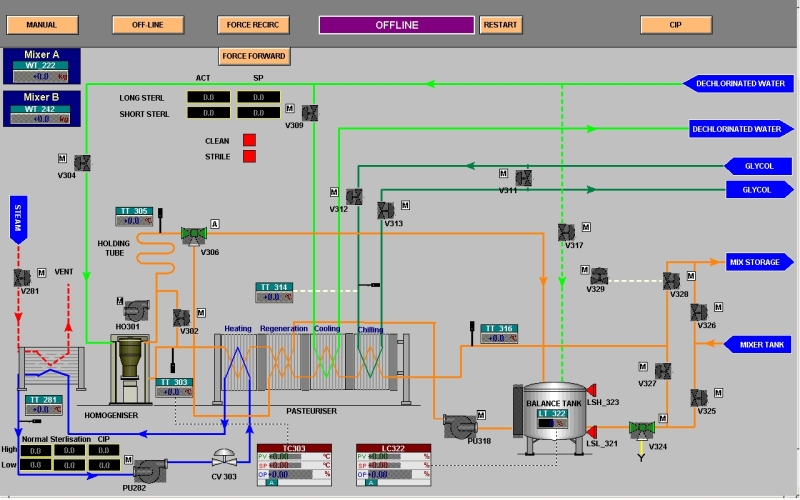

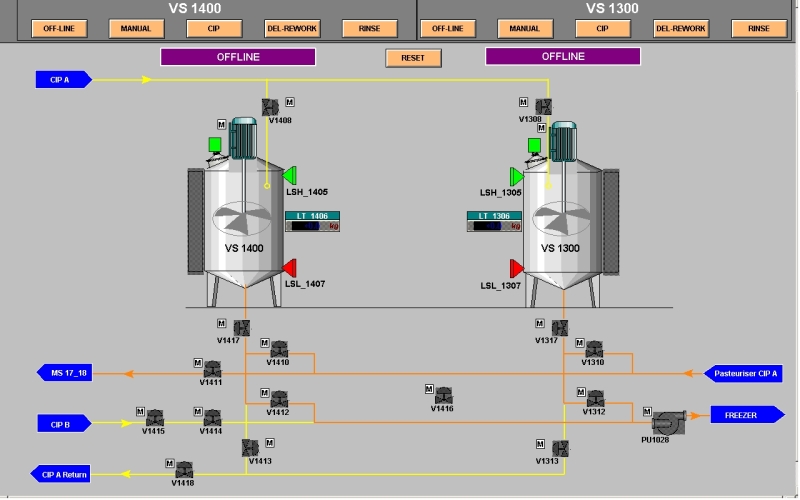

The automation system controls all sections of the Mix Plant like Mixing, Batching, Homogenization, Pasteurization, Storage, Routing to packing machines and CIP.

The scope of work included:

  1. Design and supply of control systems / cabinets.
  2. Software development
  3. Commissioning.
