 Domain  Burner Management
 Project Name  Burner Management System
 Client  Priti Projects, Durg
 Consultant
 Project Highlights S7300R system with I/O’s communicating on Profibus. WinCC communication over Ethernet using CP343-Lean.
System Configuration
1 PLC/Drives :S7300R.
2 HMI :WinCC.
3 Communication Protocol :Industrial Ethernet.
4 IO Count : 750 .
5 Software : Simatic Step7,Simatic WinCC.
Project Synopsis

Burner Management System for boilers.

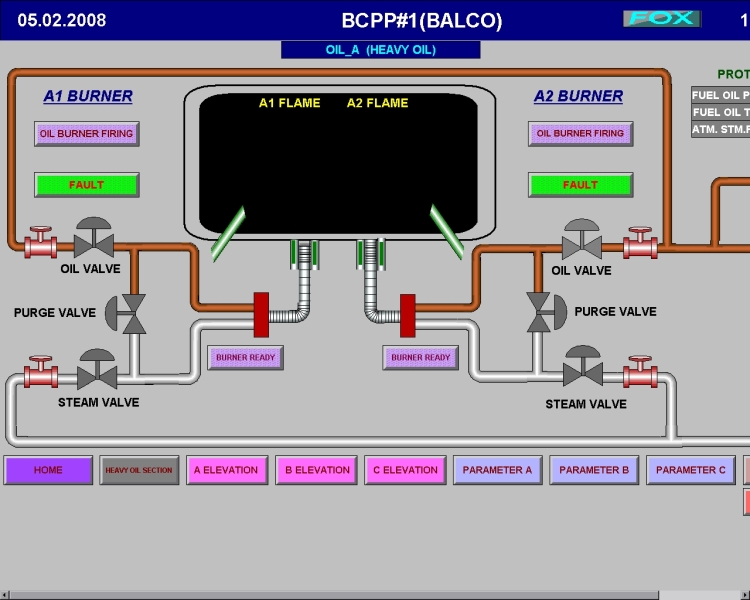

The automation system controls Atomizer, Igniter,Oil valve,steam valve and purge valve. The system ensures safe and efficient ignition, operation and shut down.

A redundant CPU system is used due to the criticality of the system for plant operation.
