 Domain  Water Treatment
 Project Name  Water Treatment Plant
 Client  Bhushan Power & Steel Ltd
 Consultant
 Project Highlights
System Configuration
1 PLC/Drives : S7-400 H
2 HMI : PC base SCADA
3 Communication Protocol : Ethernet, Profibus
4 IO Count : DI 6400, DO 3840, AI –520, AO-24
5 Software : Simatic S7, WinCC

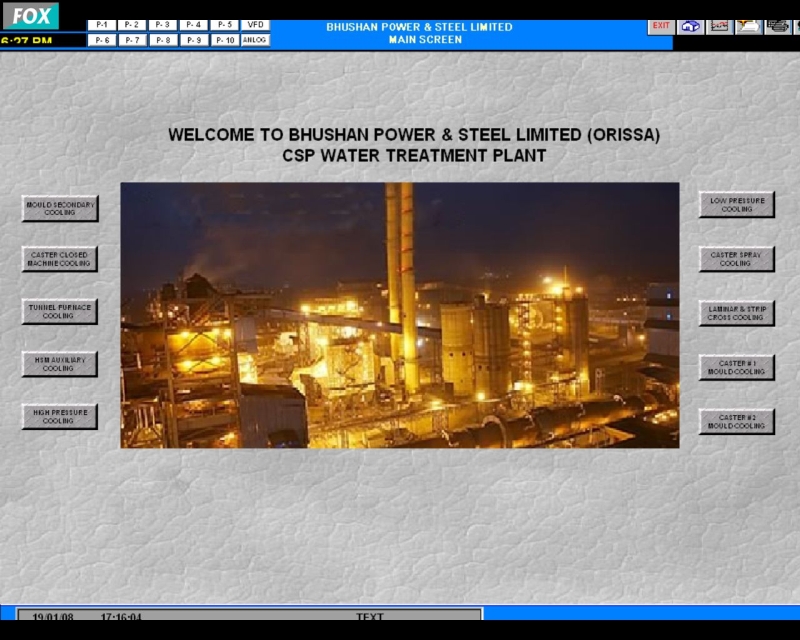

Project Synopsis

Water Treatment Plant for Continuous Strip Plant ( CSP ) in Bhushan Power & Steel Ltd. Rengalli, Orissa. The system controls many group of Pumps with discharge MOV. Pump motors are either HT & LT motors. VFD driven Cooling Tower fans are also controlled by the system.

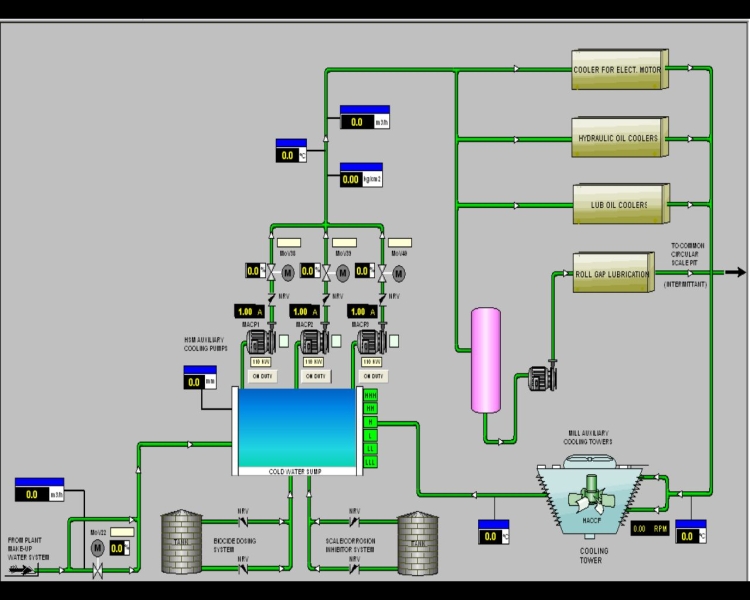

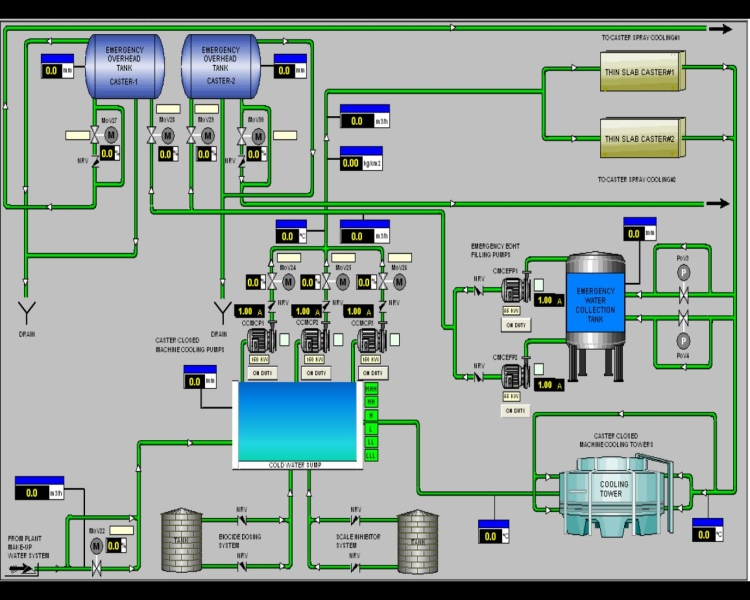

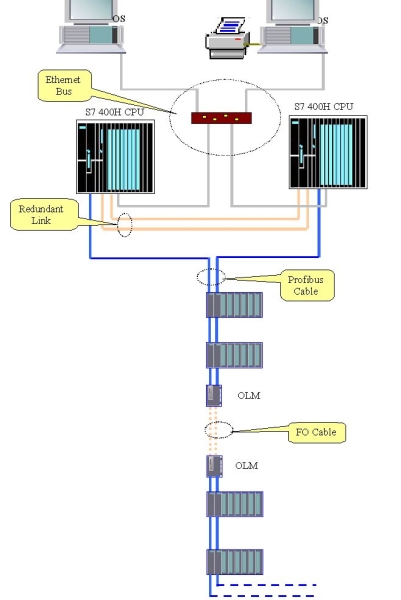

Fibre optic Profibus is used to communicate with remote I/Os. The PLC communicates with GAS BOOSTER PLC ( Siemens ) over Ethernet.

The scope of work included:

  1. Design and supply of control systems/ cabinets.
  2. Software development
  3. Commissioning and performance trials.
