 Domain  Water Treatment

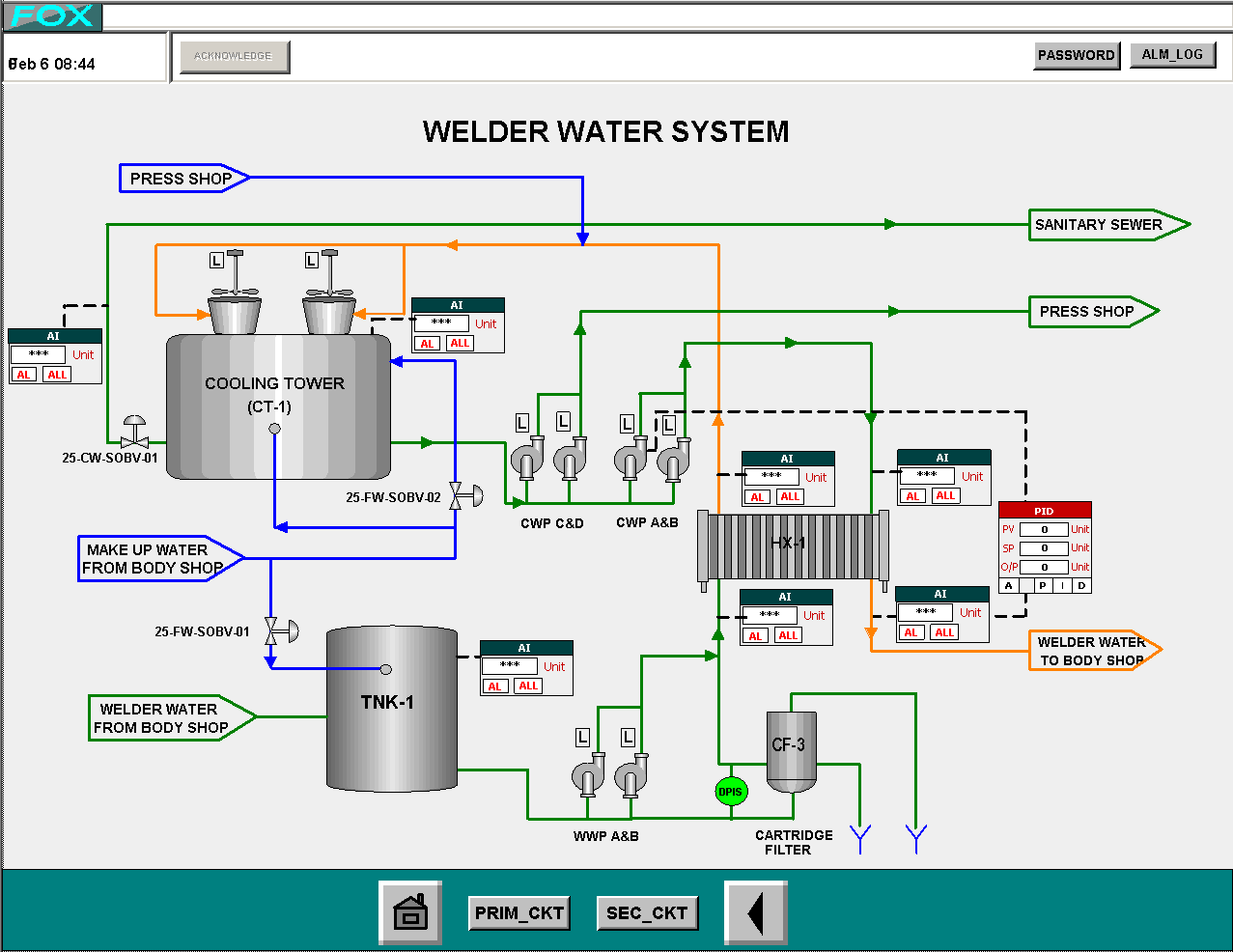

 Project Name   water treatment Plant , welder water system
 Client  Ion Exchange Infrastructure ltd
 Consultant
 Project Highlights Real system integration project with a mix of systems.
System Configuration
1 PLC/Drives : AB PLC 5000.
2 HMI : Cimplicity, MP370.
3 Communication Protocol : Ethernet.
4 IO Count : 800.
5 Software : RS Logix, Cimplicity, Simatic WinCC Flexible.
Project Synopsis

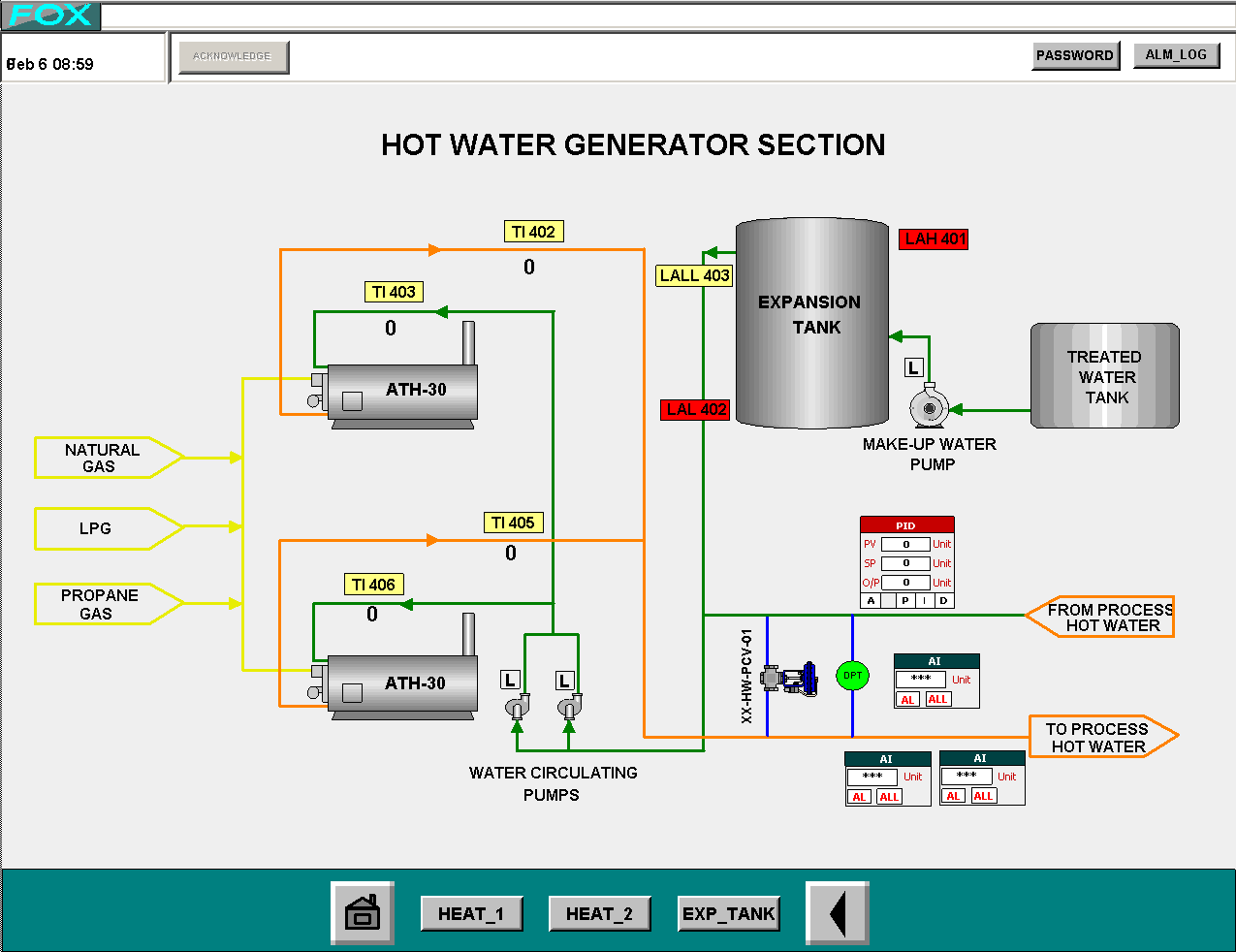

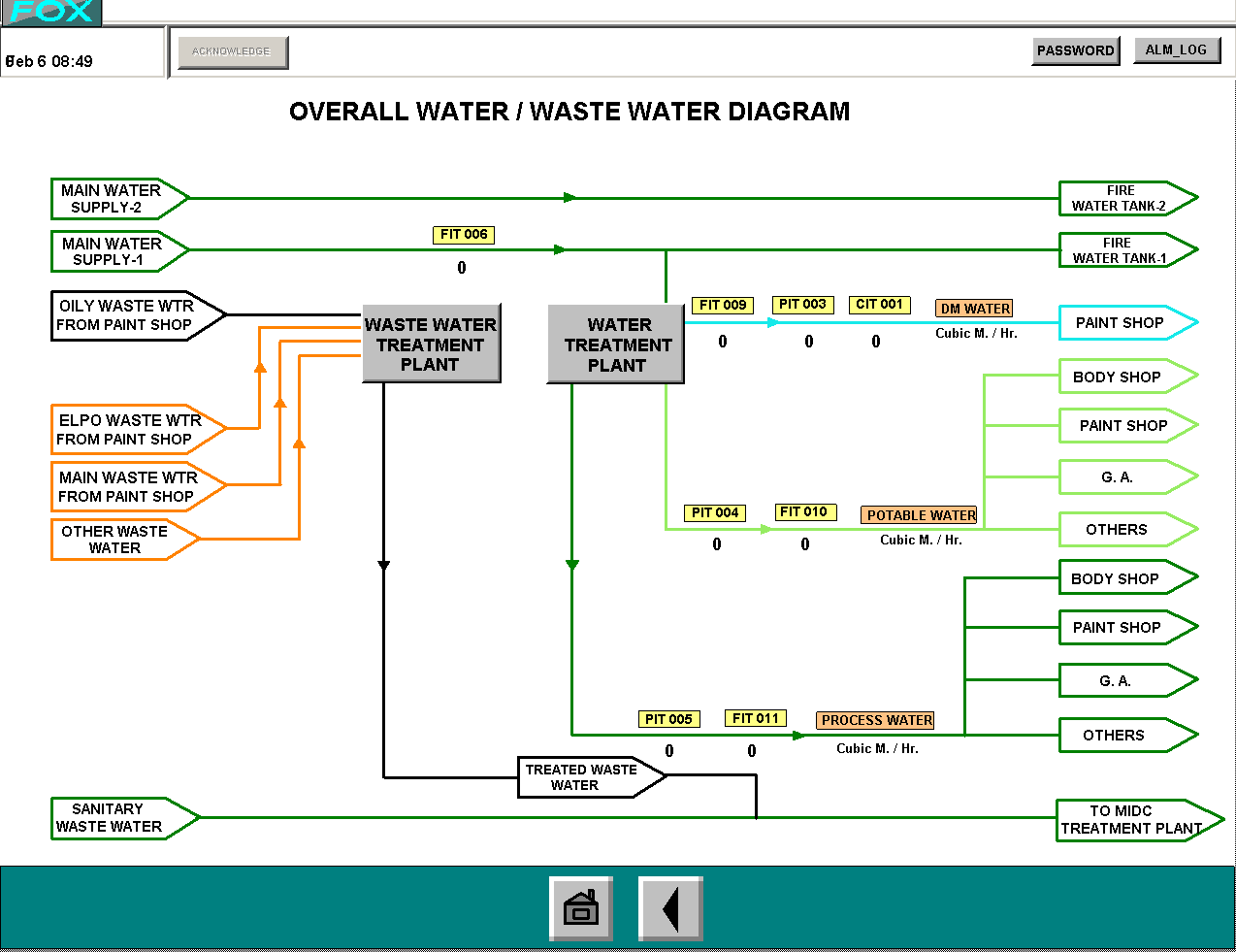

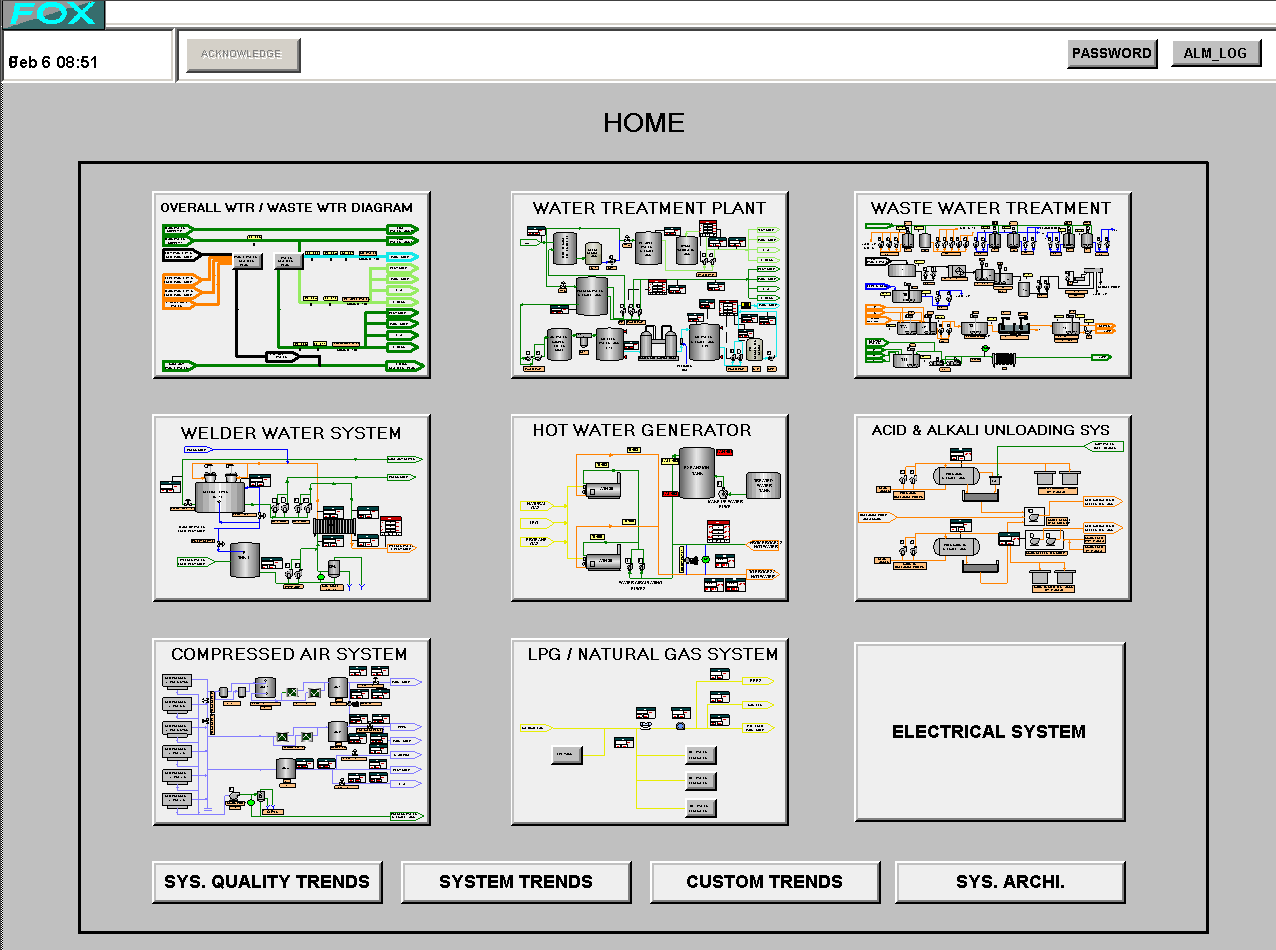

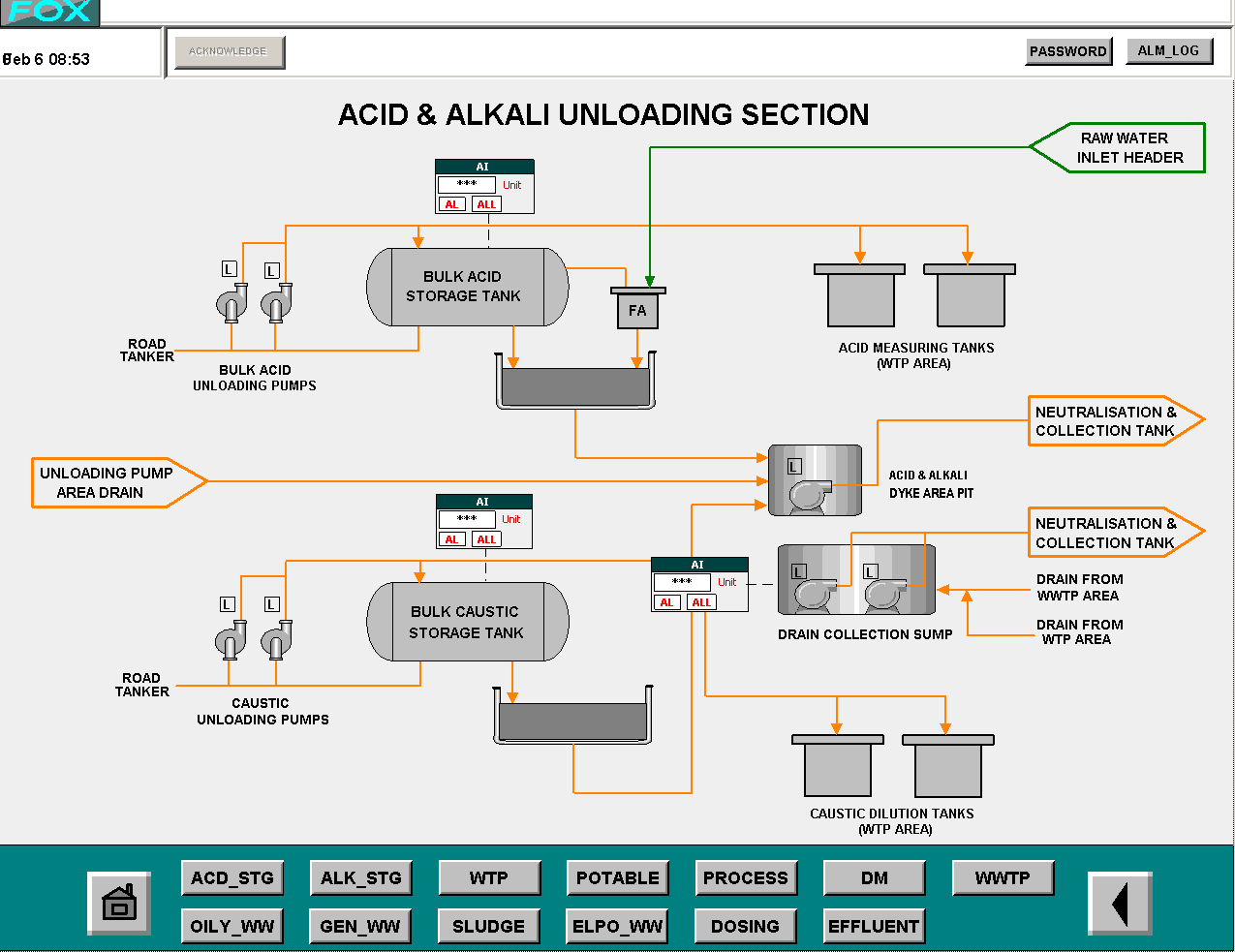

WTP is used for the treatment of raw input water or waste water by dosing acid and alkali to balance the PH. The treated water is then used in the paint shop or in the CUC building for general use . This project has a mixed configuration consisting of Allen Bradley CPU, Siemens ET200S I/Os communicating with CPU on device net and GE Fanuc Cimplicity Scada. This Scada communicates with CPU through Ethernet using OPC. Cimplicity Server- Viewer configuration is used in this project. Siemens HMI MP370s are used as operator panels and are communicating on Ethernet using OPC. The Modbus-TCP IP gateway is used for communication with the third party controller.

The scope of work included:

  1. Design and supply of control systems & cabinets.
  2. Software development
  3. Commissioning.
