 Domain  Food & Beverage
 Project Name  Twin Screw Extruder Machine
 Client  Basic Tech, Kolkata
 Consultant
 Project Highlights

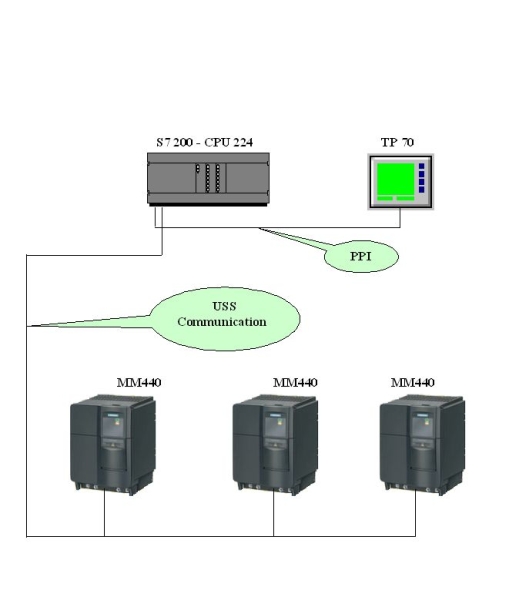

System Configuration
1 PLC/Drives : S7-200 , MM420
2 HMI : TP 70
3 Communication Protocol : USS,PPI
4 IO Count : 50
5 Software : Microwin 4.0 , TP Designer
Project Synopsis

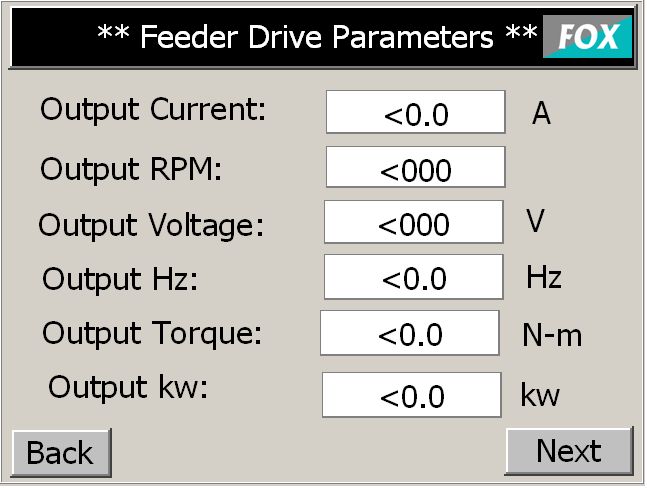

Automation system for food processing extruder. The System was developed for an OEM machine manufacturer. Data communication with drives is over Profibus. The HMI allows setting of all operating parameters.

The scope of work included:

  1. Design and supply of control systems/ cabinets.
  2. Software development
  3. Commissioning and performance trials.
