 Domain  Steel & Metals
 Project Name  Electric Arc Furnace & Ladle Furnace
 Client  ARCVAC FORGECAST PVT LTD.
 Consultant
 Project Highlights
System Configuration
1 PLC/Drives : 2Nos. S7 400
2 HMI : WinCC
3 Communication Protocol : Profibus, TCP/IP
4 IO Count : 1800
5 Software : STEP 7, WinCC
Project Synopsis

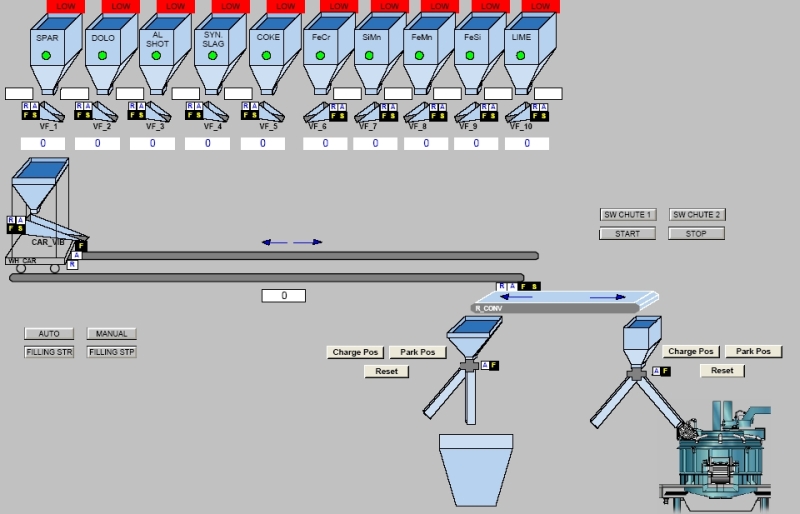

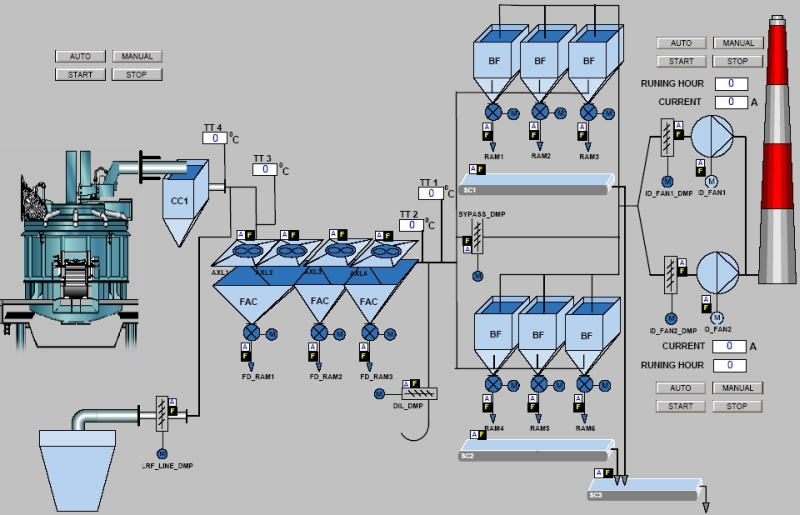

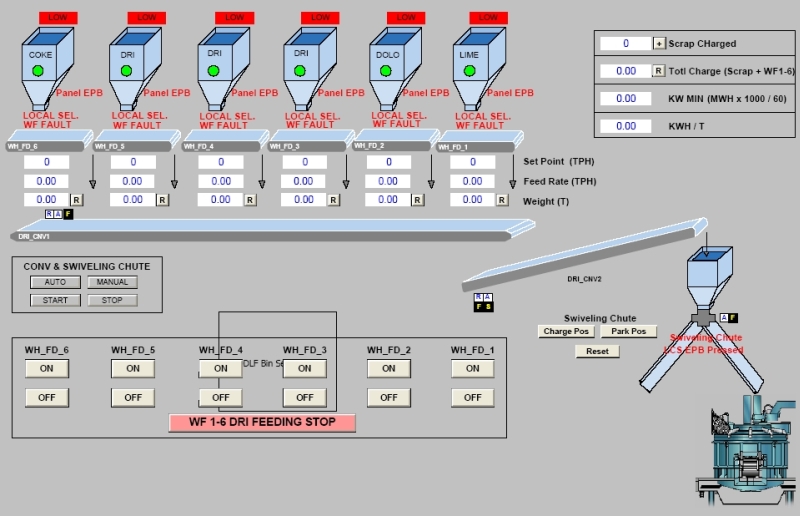

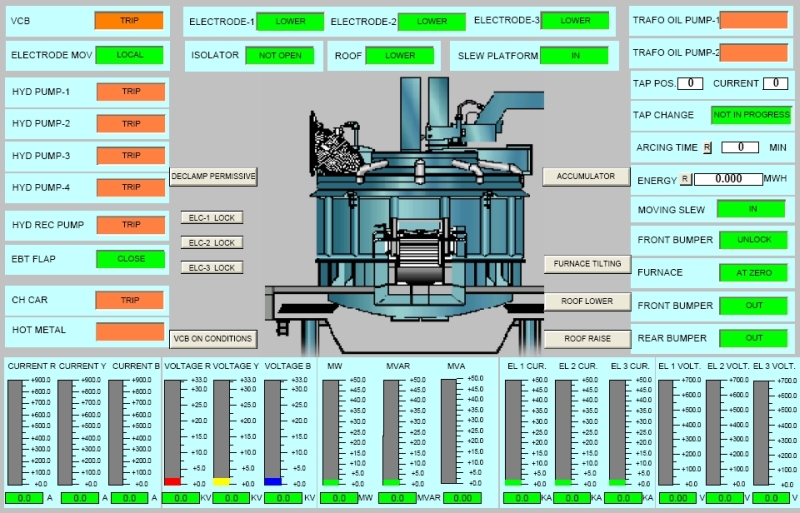

This is a 50 Ton Electric Arc Furnace & 50 Ton Ladle Furnace with all the auxiliary system like Water Treatment Plant, Alloy Feeding System, Fume Extraction System and Hydraulic System as the part of the automation.
The entire field IO’s are communicating with PLC on PROFIBUS. EAF PLC is communicating with Electrode Regulation PLC on PROFIBUS trough DP/DP coupler.
All the Operating Stations communicate over Ethernet on TCP/IP protocol.

The scope of work included:

    • Design and supply of control systems / cabinets.
    • Software development
    • Commissioning
