 Domain  Steel & Metals
 Project Name  EAF Dust Extraction System
 Client  Alstom, Kolkata
 Consultant
 Project Highlights Dust Collection System for Electric Arc Furnace

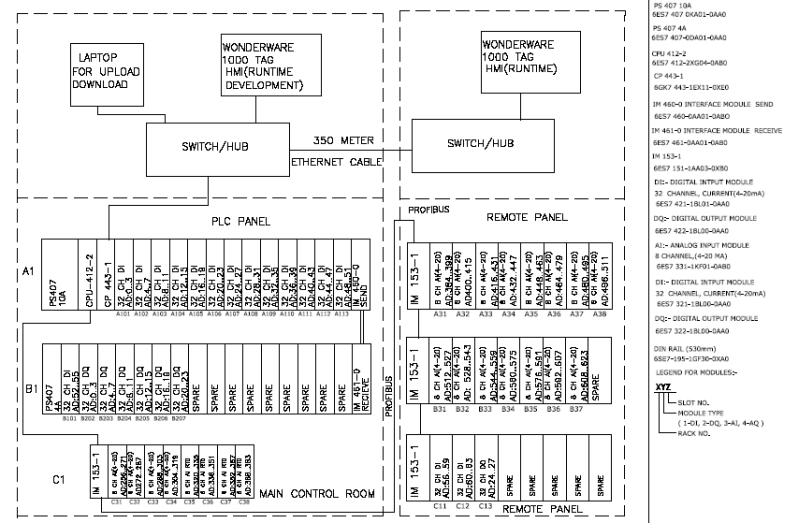

System Configuration
1 PLC/Drives

: S7-400 PLC System : CPU414-2DP & Remote I/Os on Profibus

2 HMI : Wonderware 9.5.
3 Communication Protocol : Industrial Ethernet.
4 IO Count : 450.
5 Software : Simatic Manager
Project Synopsis

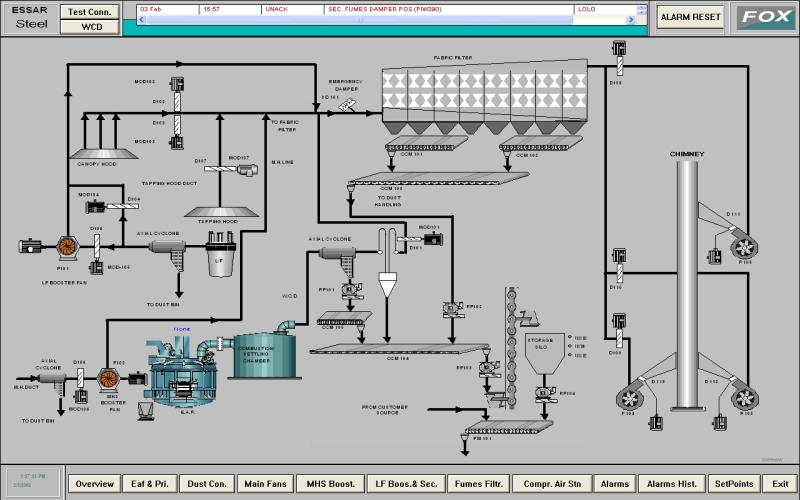

Automation system for dust extraction from Electric Arc Furnace at Essar Steel, Hazira.

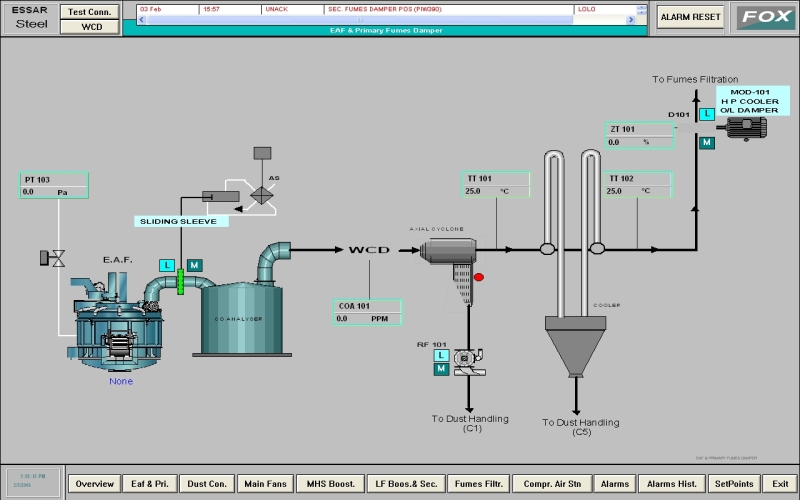

Temperature and pressure control during the process are handled by the PLC.
The system uses S7-400 & Wonderware. I/Os are on Fiber Optic Profibus network.

The scope of work included:

  • Design & supply of control systems/ Cabinets.
  • Software development
  • Commissioning
