 Project Details
Back

 Domain  System Upgradation
 Project Name  S5 to PCS 7 up-gradation for Crumb making.
 Client  Cadbury India Ltd, Induri
 Consultant
 Project Highlights S5 to PCS7 conversion, Reports
System Configuration
1 PLC/Drives

: PCS7-AS ( CPU 417-4 )

2 HMI : PCS7-OS.
3 Communication Protocol : Profibus-DP, Industrial Ethernet.
4 IO Count : 2300.
5 Software : PCS7-ES/OS V7.0
Project Synopsis

In order to increase production capacity of the Crumb making section, it was decided to move out of the discrete S5 systems (such as135U, 95Us,etc) to the state of the art integrated control system. The aim was to bring down the crumb making time from 3 hours per batch to 2 hours per batch.

The new control system is catering to the following sections

Milk mixing

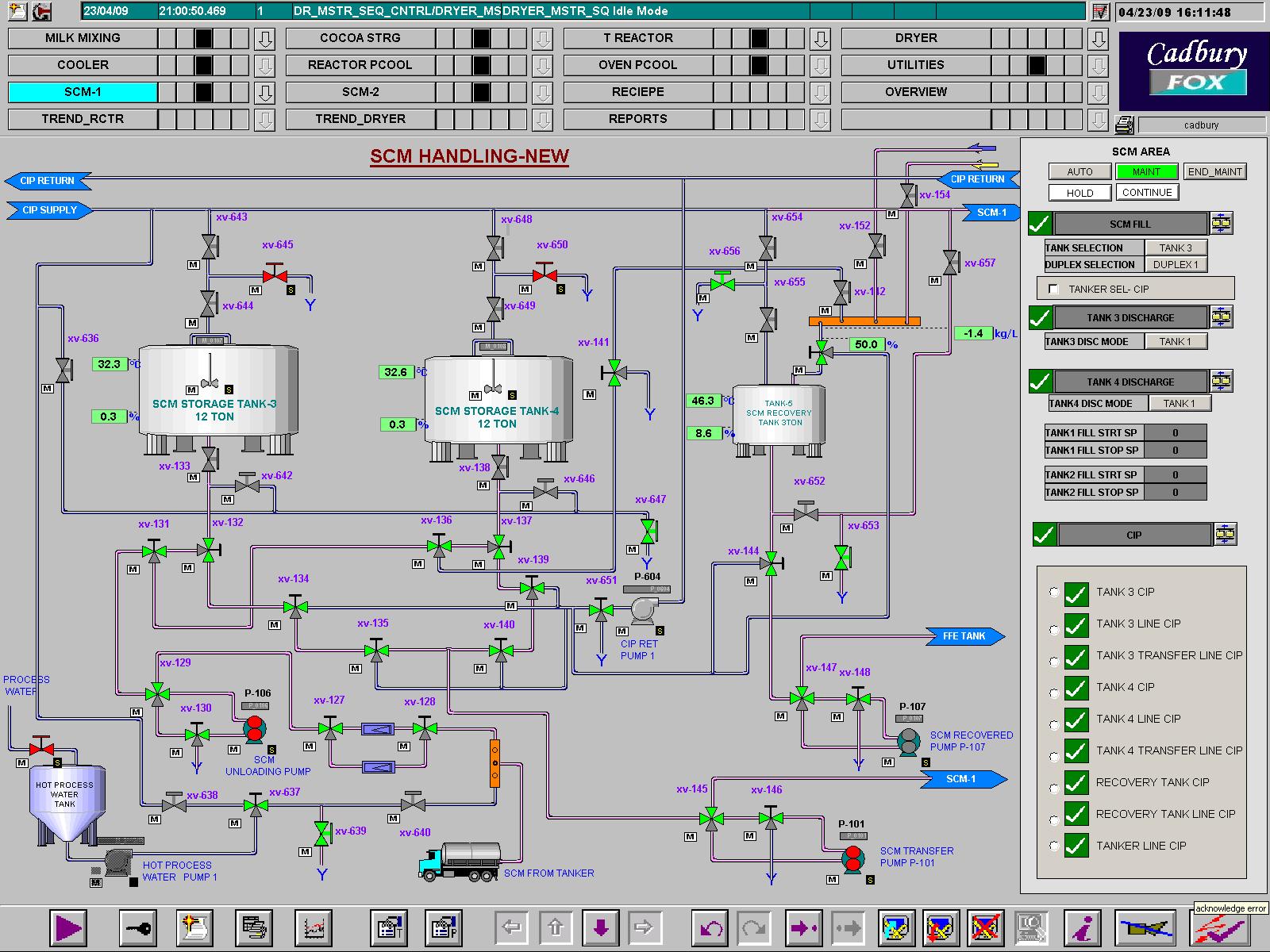

SCM Handling (NEW)
T-reactor
Cocoa Storage

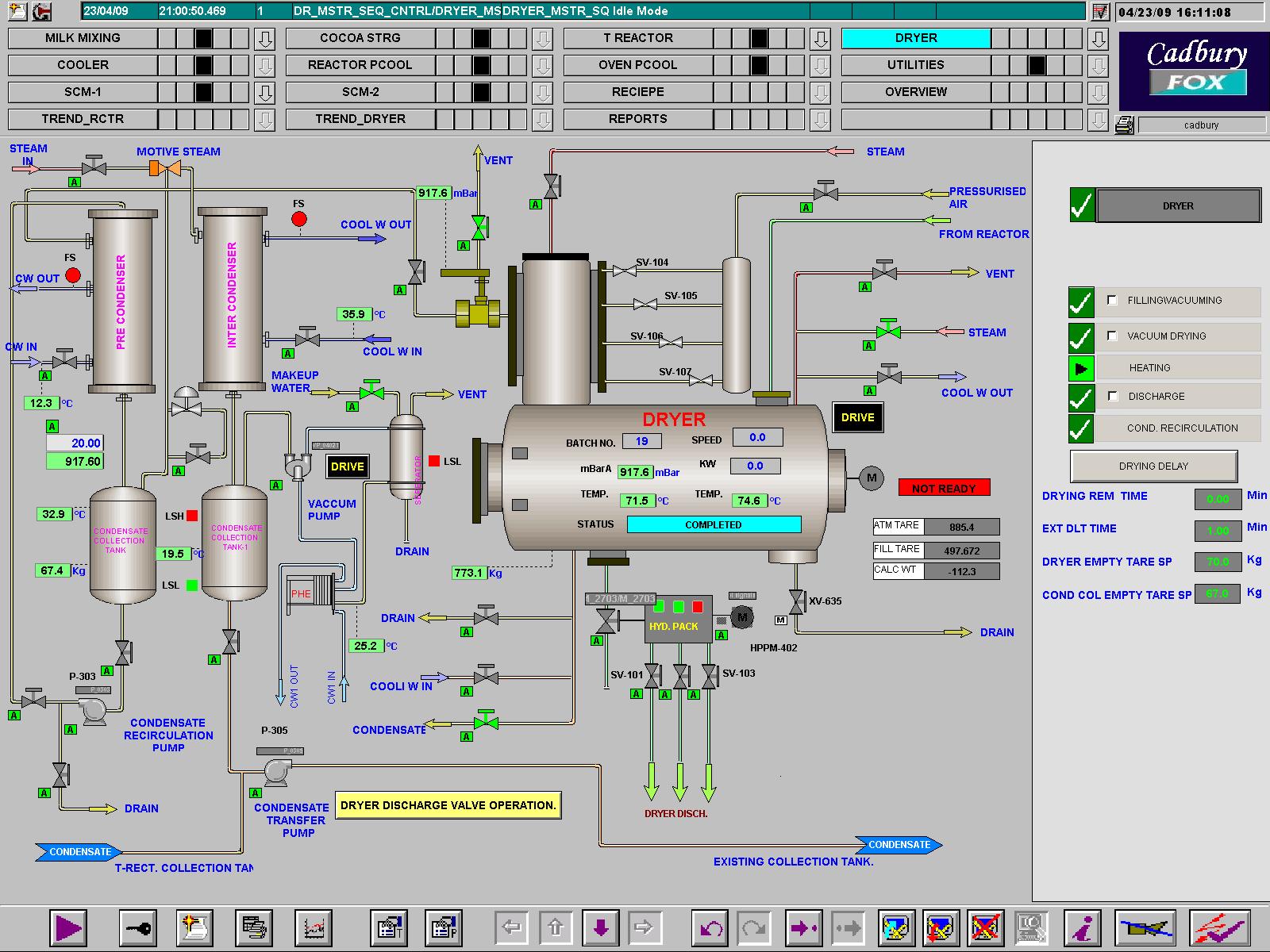

Dryer (NEW)
Post T-reactor (including refiner & bagging)
Post Oven (including refiner & bagging) (NEW)
Post cooler
Utilities


The challenge was to carry out the up-gradation in minimum shutdown time.

The scope of work included
    1. Design and supply of control systems.
    2. Software development
    3. Commissioning
