 Domain  Burner Management
 Project Name  Burner Management System
 Client  Hallmark, Pune
 Consultant
 Project Highlights Burner Management System Using S7300 & WinCC
System Configuration
1 PLC/Drives : S7-315-2DP
2 HMI : WinCC
3 Communication Protocol : Profibus,Ethernet
4 IO Count : 100
5 Software : Simatic Manager V5.3, WinCC V6.0 SP4
Project Synopsis

Automation system for Burner Management System.

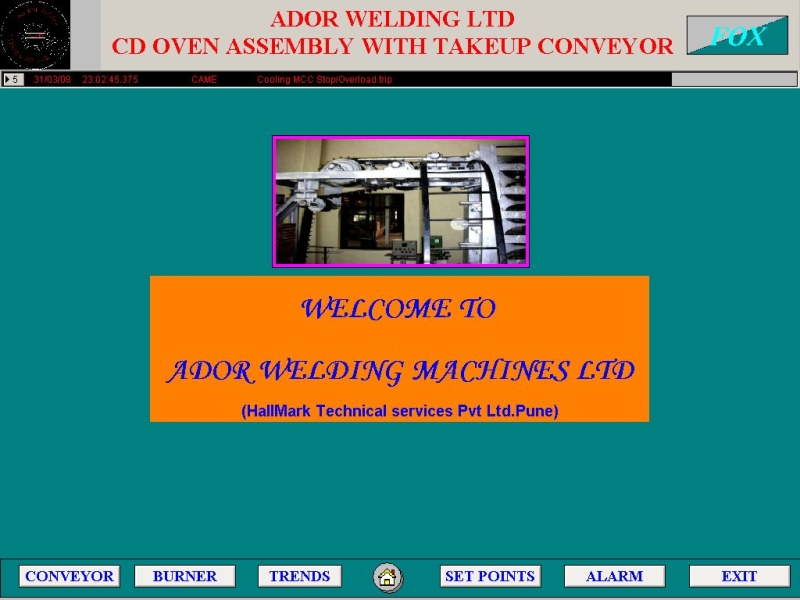

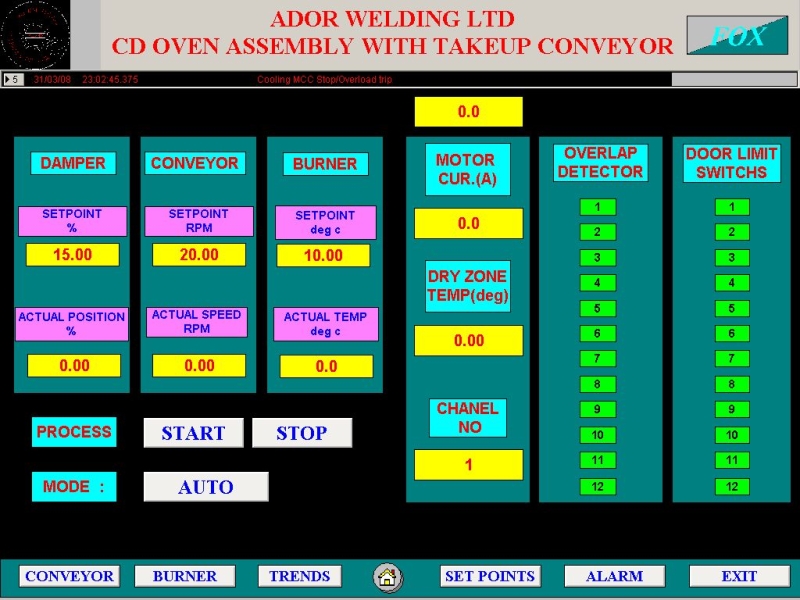

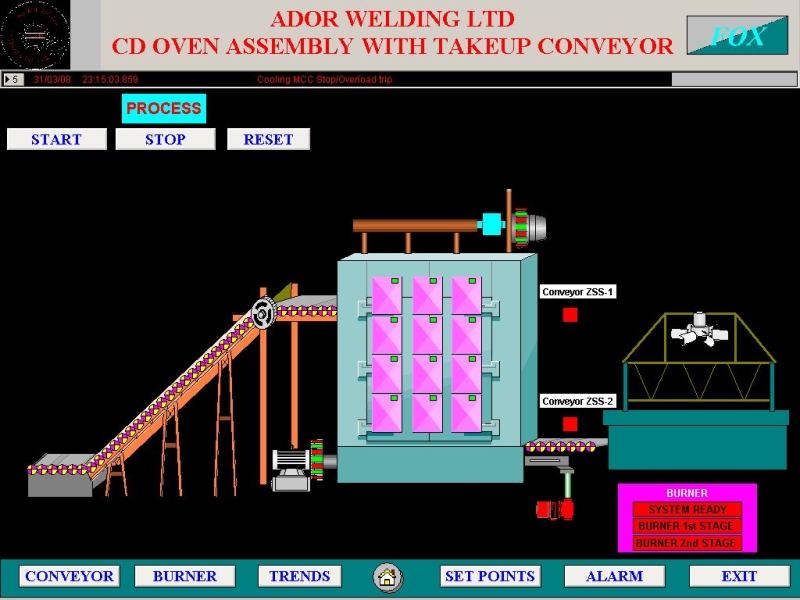

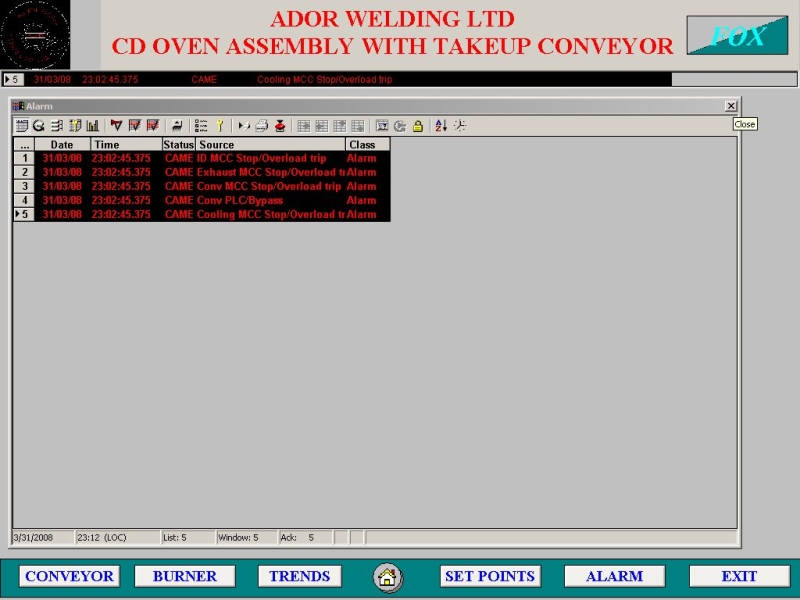

The system uses Simatic S7-300 with remote I/Os for controls and WinCC for HMI. Plant control and status overview is from the HMI which also generates the required reports.

The scope of work included:

  1. Design and supply of control system and cabinets.
  2. Software development
  3. Commissioning
