 Domain  System Upgradation
 Project Name  Styropor Plant Process Modification & System Migration from S7-WinCC System to PCS7 System
 Client  Siemens, Kalwa
 Consultant  Aarvie Consultant, Thane
 Project Highlights System Migration from S7-WinCC to PCS7 with addition of Remote ET200M Stations.
System Configuration
1 PLC/Drives : AS-417-4-H with Remote ET200M Stations & 3-Sipart DR-24 for Controlling of Process Temperature Profile over Y-Link

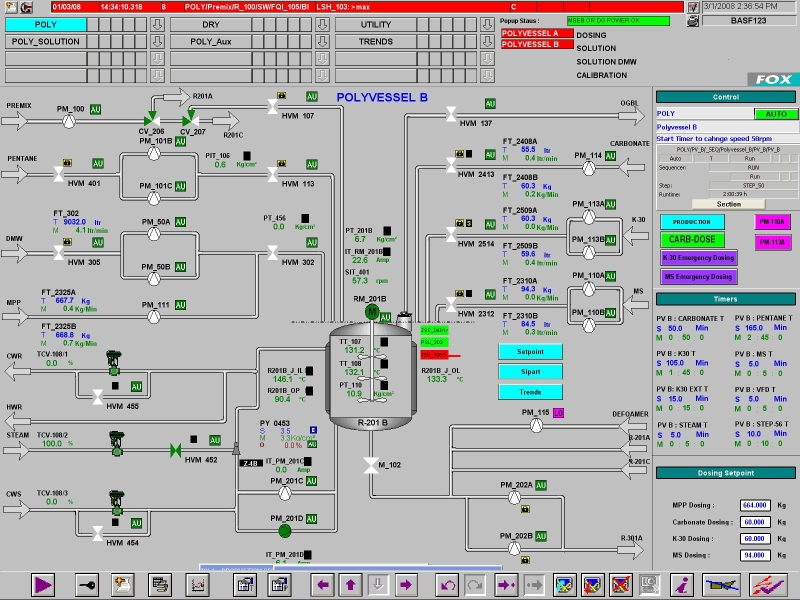

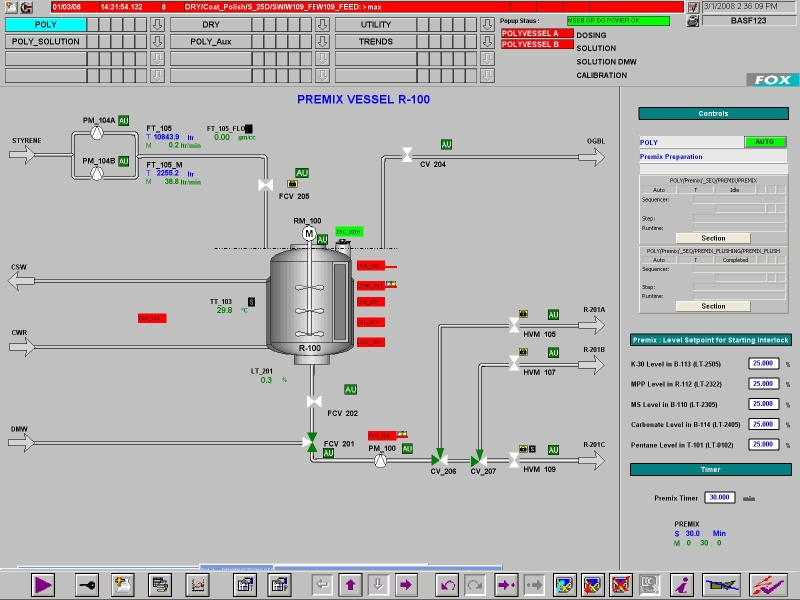

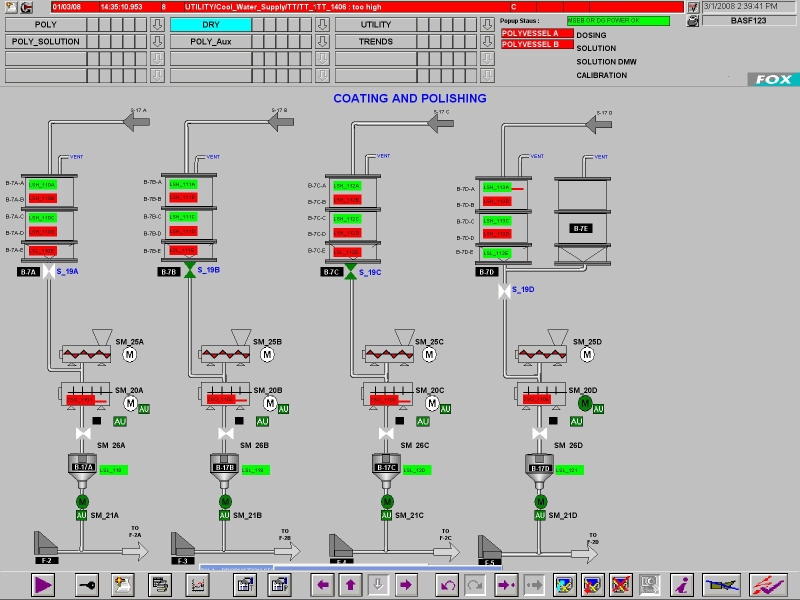

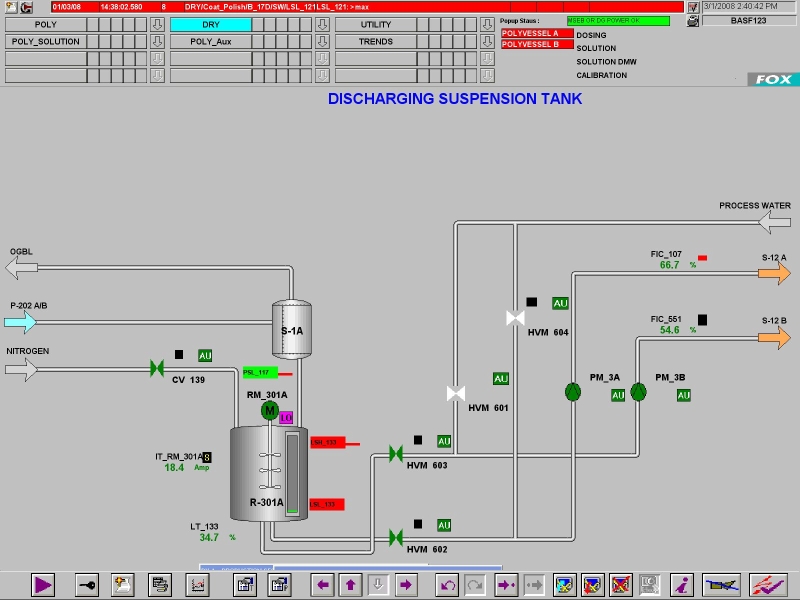

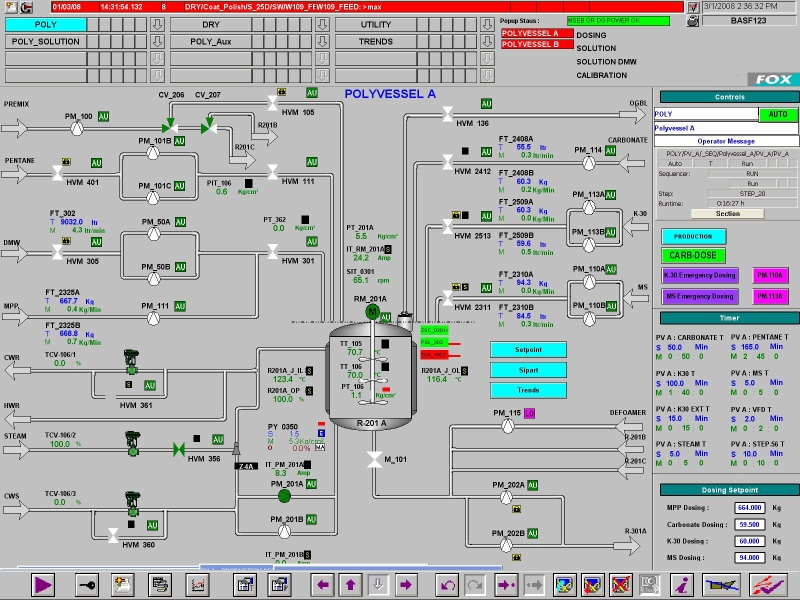

2 HMI : PCS7-OS – 3 Stations
3 Communication Protocol : Profibus-DP, Ethernet
4 IO Count : 2160
5 Software : PCS7 ES/OS Software V7.0 SP2, BASF Device Library V2.0
Project Synopsis

Migration of automation system to PCS7 from Simatic S7-400.

This BASF plant manufactures Styropor. The automation system controls the Polymerization and the Dry Feeder sections. The upgrade also involved process modification to improve productivity and quality at the plant.

Migration was carried out synchronized with the modifications done in the mechanical system. The available shutdown time was very short.


The scope of work included:

  1. Design and supply of control systems & cabinets.
  2. Software development .
  3. Commissioning.
